Speech Element

A speech element is used to present several speech commands to the caller.

*** Important Note: Speech recognition is not 100% accurate, especially when it is applied over the spoken command over the telephone lines. Design a good voice user interface (VUI) is important for a successful IVR application. For example, it is much easier for the speech recognition engine to differentiate "yes" and "I do not agree" than "yes" and "no". ***

Properties

General Properties: Element Name, Transition from Parent Element

Execution

1. Execute all actions of the element
2. Play all prompt items of the element
3. Wait for caller speech command
4. Based on caller input, apply speech recognition and select the transition that match the caller input, set the next active element to the element the selected transition leads to

Example

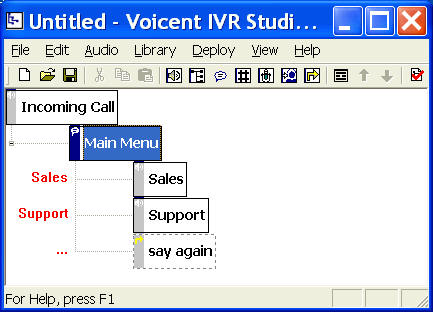

The Main Menu element is a speech element. Please note that the speech commands for the transitions are defined in child elements. After the Main menu is presented to the caller, he is expected to say either "sales" or "support".
