The best way to interface with Voicent AutoReminder is through the HTTP protocol. You can create, delete, and list appointments all through this interface. The browser interface provided can be used as a sample for your application.

• Enable Web Access
• Add Appointment
• Delete Appointment
• List Appointment
• Get Appointment Status
• Get Appointment reminder call report
• Callpad sample

Enable Web Access

To enable web access, select View > Setup Client Server from the program main menu. Choose "allow web access". You need to have enterprise edition if you want to access it from a remote computer. For testing, you can use the browser on the same computer.

Click here to find more information about password protected access.

(Release 4 and earlier) To enable web access, select the "allow web access" and set the port number in the Customize View Dialog.

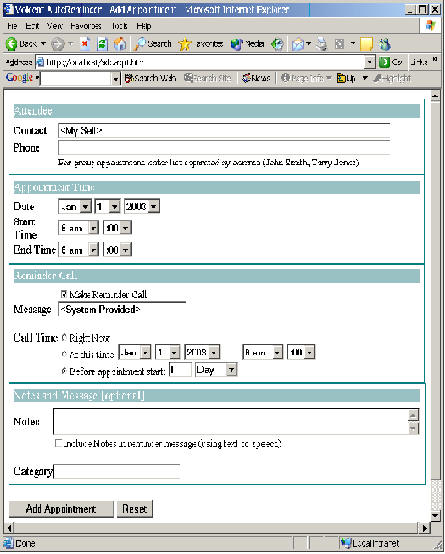

Once enable, you can access Voicent AutoReminder using any browser.

Add Appointment Programmatically

AutoReminder supports the Browser Interface through its HTTP interface. Since HTTP protocol is independent of programming languages, you should be able to interface with AutoReminder using any programming language. Most programming languages provide HTTP client library (usually free), which makes it trivial to submit parameters to a URL. The Gateway Simple Call Interface has programming samples using many major programming languages. If you are not familiar with HTTP, please Google the web and you should be able to find plenty of libraries, samples, and tutorials.

To create a new appointment programmatically, you need to send HTTP POST request to Voicent AutoReminder URL followed by "/addHandler". Here are the parameters you need to set.

Delete Appointment Programmatically

To delete an appointment, you need to send HTTP GET/POST request to Voicent AutoReminder "/delHandler". Here are the parameters.

List Appointment Programmatically

To list appointments for a particular date, you need to send HTTP GET/POST request to Voicent AutoReminder "/listHandler". Here are the parameters.

Get Appointment Status

To get status and confirmation status of an appointment, you need to send HTTP GET/POST request to Voicent AutoReminder "/statusHandler". Here are the parameters.

Parameter Meaning Value fpath appointment ID value in [ ] when addHandler returned

Get Appointment Reminder Call Report

To get reminder call report of an appointment, you need to send HTTP GET/POST request to Voicent AutoReminder "/reportHandler". Here are the parameters.

Parameter Meaning Value fpath appointment ID value in [ ] when addHandler returned

Callpad Sample

This is a MFC sample program that utilizes the Openweb Access interface. Click here to download the sample code.
