Web HTTP Interface

The best way to interface with Voicent AutoReminder is through the HTTP protocol. You can create, delete, and list appointments all through this interface. The browser interface provided can be used as a sample for your application.

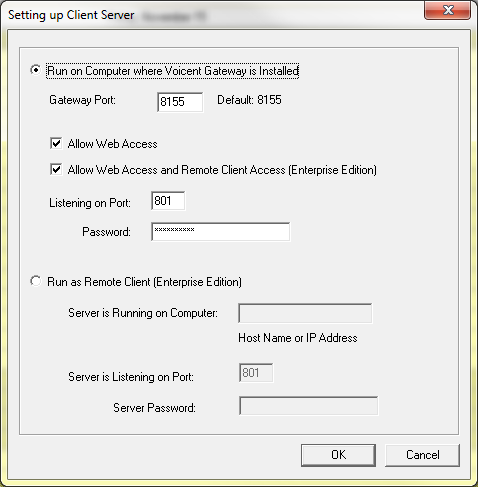

To enable web access, select the "allow web access" and set the port number in the "View" -> "Setup Client Server..." dialogue.

Once enabled, you can access Voicent AutoReminder using any browser. Go to your browser of choice, enter the "IP address" (or "localhost" followed by the port number you specify in the "Setup Client Server..." window.

NOTE: All parameters are case sensitive.

Add Appointment

To create a new appointment programmatically you need to send a "HTTP POST" request to Voicent AutoReminder's URL followed by "/addHandler" Here are the parameters you need to set.

Parameter Meaning Possible Value
contact Attendee contact name (comma separated for group)
phone Attendee phone phone number (comma separated)
year Appointment year year
month Appointment month month
date Appointment date 1,2,...31
shour Appointment start hour 12pm, ... 11pm
sminute Appointment start minute :00, :05, ...
ehour Appointment end hour 12pm, 1am, ...
eminute Appointment end minute :00, :05, ...
makecall Make reminder call on
calltype reminder call type now, callat, callbefore
stdmsg reminder call message <System Provided>, any customized message
cyear reminder call year year
cmonth reminder call month Jan, Feb, ...
cdate reminder call date 1,2, ... 31
chour reminder call hour 12pm, ... 11pm
cminute reminder call minute :00, :05, ...
cbnum reminder call before 1, 2, ...
cbunit reminder call before unit Day, Hour, Minute
notes Appointment notes any text
includenotes include notes in the call on
cat Appointment category any text
user Calendar user for multi-user license
wavfile audio file included full file path name
confirm need confirmation on, 1, or any none 0 digit
Delete Appointment

To delete an appointment, you need to send a HTTP GET/POST request to Voicent AutoReminder "/delhandler" Here are the parameters.

Parameter Meaning Possible Value
fpath Appointment ID value in [ ] when addhandler is returned
List Appointment

To list appointments for a particular date, you need to send a HTTP GET/POST request to Voicent AutoReminder "/listhandler" Here are the parameters.

Parameter Meaning Possible Value
year year year
month month Jan, Feb, ...
date date 1, 2, ... 31
Get Appointment Status

To get appointment call status and confirmation status, you need to send a HTTP GET/POST request to Voicent AutoReminder "/statushandler" Here are the parameters.

Parameter Meaning Possible Value
fpath Appointment ID value in [ ] when addhandler is returned

The return is in this format:

STATUS=status CONFIRM=confirm INFO=infostring For example, the following line is a call that is answered by an answering machine: STATUS=Made CONFIRM=INFO=Message left on answering machine

The possible values for call status are: pending, retry, made, failed, mixed.

The possible values for call confirmation are: Confirmed, Confirmed (No), Maybe, Cancel, Reschedule, Message, and [Customized String].

Get Reminder Call Report

To get appointment reminder call report, send HTTP GET/POST request to Voicent AutoReminder "/reporthandler" Here are the parameters.

Parameter Meaning Possible Value
fpath Appointment ID value in [ ] when addhandler is returned

The return is the call report in HTML format. The call report contains more detailed information about the reminder call, such as call made data and time, the audio file name of a voice message response.

Example Use

Here is an example of how the name value pairs for the Auto Reminder web interface post will look like:

contact=John&phone=5555555555&year=2014&month=Jan&date=30&shour=1pm&sminute=:10&ehour=2pm&eminute=:00
&makecall=on&calltype=now&stdmsg=&cyear=2013&cmonth=Jan&cdate=20&cminute=:05&cbnum=0&cbunit=Day&notes=ahfahw
&includenotes=off&cat=&user=&wavfile=&confirm=1

Callpad Sample

This is a MFC sample program that utilizes the Openweb Access interface.Click here to download the sample code.
